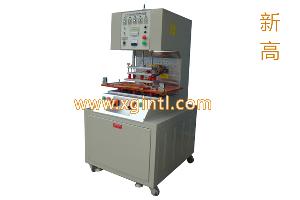

Automatic high frequency medical bag heat sealing machine main purposes:
medical bags high frequency heat sealing machine is mainly used in medical supplies industry sectors PVC, EVA plastic materials such as heat welding sealing: bags, Irazu, drainage bag, infusion bag, urine bag , waste bags, PVC identification band, nutrition bags; frequency medical bag heat sealing machine, also known as high-frequency medical bag heat sealing machine, blood bag heat sealing machine, infusion bag heat sealing machine, PVC identify with heat sealing machine, drainage bag heat sealing machine, urine bag heat sealing machine, nutrition bag heat sealing machine, medicine bag heat sealing machine, waste bag heat sealing machines and other medical bags heat welding equipment
Product description:
-
Automatic high frequency medical bag heat sealing machine works:
mainly uses high-frequency principle, the use of high-frequency self-excited oscillation frequency high voltage rectifier tube, so that high frequency tube frequency transient current generated is processed PVC, EVA and other plastic materials, high-frequency current electric field in the interior polar molecules splicing changes, together with a certain pressure can cause the plastic material to weld sealing effect.
-
Automatic high frequency heat sealing machine medical bags basic structure:
1. mainly uses automatic heat welding operation, only two volumes manually PVC, EVA film material in the corresponding rack mounted using the servo motor rotation, driven PVC, EVA film rotation, accurate positioning using infrared, heat welding process is fully controlled by the time the operation is simple and convenient.
(2) all stainless steel production, in line with medical-grade workshop use, within the scope of the inspection operation with fully enclosed, secure high performance, high frequency radiation is fully adopt international top technology, greatly reducing the problem of electromagnetic radiation on the human body positive radiation strength.
3. equipment designed mounting plate for the three-phase positioning operation mold, mold installation just need to mold into place to tighten the screws on both sides of the mold easy to install, the new design of PLC control parameters can be used.
-
Automatic high frequency medical bag heat sealing machine features:
1. equipment outside the beautiful models, the production of fine, ergonomic and daily operating habits, easy operation and routine maintenance; equipment components meet the national standards and the relevant safety standards.
2. designed for maximum power consumption 15KW, the average power consumption 7.5KW, device control so the program are PLC control, man-machine interface operation, parameter design is simple, and can remember the parameters of various products.
3 design high frequency oscillation part adopts the most advanced high HQ values ??coaxial resonant circuit, the output size of the welding effect adjustment with the product, do not overload operation
4. device configuration color light (red, green) shows the state in line with international safety norms, the heat sealing process in PVC, EVA material close to exhaustion, the device automatically alarm to alert attention.
5. equipment with stainless steel and aluminum body materials mainly fuselage panels using A3 iron, stainless steel seamless exterior package stickers, convenient for daily disinfection equipment, compliance with GMP requirements.
|
Model
|
XG-8000ATS
|
|
High Frequency Output
|
8000W
|
|
Oscillation Frequency
|
27.12MHz
|
|
Supply Voltage
|
50/60HZ AC380V 3P
|
|
Input Power
|
15KVA
|
|
Oscillating tube
|
7T69RB
|
|
Inverter gate
|
5557
|
|
Rectifiers
|
Silicon diode
|
|
The upper and lower electrode spacing
|
250mm
|
|
Upper Fixing dimensions
|
320mm * 360mm
|
|
Lower fixing dimensions
|
450mm * 550mm
|
|
Compression method
|
Atmospheric pressure
|
|
Maximum pressure
|
200KG
|
|
